THIS IS HOW SMART
WORKS
MECHANICALLY.

WE ARE STANDPUNKT FROM WÜRZBURG.

Our goal is to rethink prosthetics.
STANDPUNKT develops innovative fitting parts that go beyond the beaten track – for greater safety, efficiency and quality of life in the everyday lives of prosthesis wearers.

The founders and managing directors Matthias and Johannes Klopf contribute their many years of experience in the medical supply industry directly to product development. The close contact with users flows directly into our solutions – practical, user-oriented and forward-looking.

UNITOS SMART.

The UNITOS Smart builds a bridge between complex electronic systems and simple mechanical systems for transfemoral amputees with mobility grades 1 and 2: master the next step safely with the revolutionary, easy-to-use and 100% mechanical prosthesis system.

Suitable for:

Simple. good. go

Prosthesis function - Unitos Smart prosthesis system

The Unitos Smart impresses with its exceptionally high mobility and maximum suitability for everyday use:

- 30° plantar flexion in the stance phase for optimum ground adaptation
- 10° dorsiflexion in the swing phase supports the knee movement
- Individually adjustable trip protection noticeably reduces the risk of falling
- Adaptable to the progress of therapy – for safety and control with every step

Target group

Suitable for:

- Transfemoral, knee-ex and hip-ex amputees
- Mobility level 1 and 2
- Especially recommended for users with increased safety requirements

User benefits

Effort-saving, natural walking
More safety with every step
Without external power supply
Reduction of compensatory movement patterns

For technicians

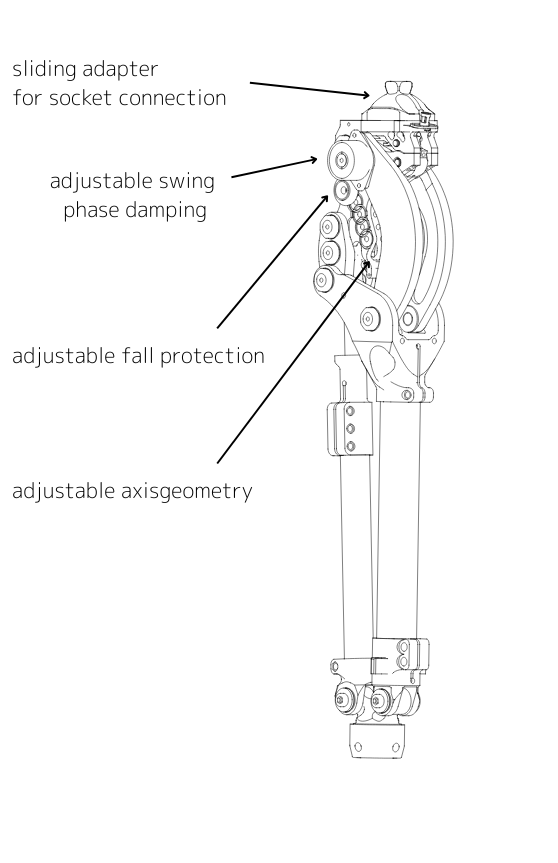

The Unitos Smart is an integrated system consisting of:

- 4-axis polycentric knee joint
- Ankle joint with high mobility (10° dorsiflexion, 30° plantar flexion)
- Tube adapters
- TPU protective cover

The innovative mechanism allows active dorsiflexion in the swing phase and up to 30° plantar flexion when standing. An adjustable flexion limiter helps to prevent falls. A manual lock supports safe sitting and a stable stance.

Technical data

Product class: 1
Maximum permitted body weight: 125 kg
Mobility class: 1 and 2
Installation height (maximum): 560 mm
Overall height (minimum): 350 mm
Weight (mechanics): 1,900 grams maximum/1,700 grams minimum
Weight (cover): 380 grams maximum/270 grams minimum
Operating temperature: -20 °C to +50 °C
Warranty: 3 years
